SHCTF-a_cup_of_tea

一道简单的tea算法题目，核心伪代码如下

1
2
3
4
5
6
7
void __fastcall sub_1241(__int64 a1, __int64 p_src)
{
    int n15; // [rsp+1Ch] [rbp-4h]

    for ( n15 = 0; n15 <= 15; ++n15 )
        *(4LL * (n15 / 4) + a1) += *(n15 + p_src) << (8 * (n15 % 4));
}
1
2
3
4
5
6
7
8
_BOOL8 __fastcall sub_1439(_DWORD *a1)
{
    sub_134E(a1, aWelcomeToShctf_0);              // "welcome_to_SHCTF"
    if ( *a1 != -1699360031 || a1[1] != -1120419751 )
        return 0;
    sub_134E(a1 + 2, aWelcomeToShctf_0);          // "welcome_to_SHCTF"
    return a1[2] == -1515845715 && a1[3] == -1804683212;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
__int64 __fastcall sub_134E(unsigned int *a1, _DWORD *p_welcome_to_SHCTF)
{
    __int64 result; // rax
    unsigned int v3; // [rsp+1Ch] [rbp-24h]
    unsigned int v4; // [rsp+20h] [rbp-20h]
    int v5; // [rsp+24h] [rbp-1Ch]
    unsigned int n0x1F; // [rsp+28h] [rbp-18h]

    v3 = *a1;
    v4 = a1[1];
    v5 = 0;
    for ( n0x1F = 0; n0x1F <= 0x1F; ++n0x1F )
    {
        v5 -= 1640531527;
        v3 += (v4 + v5) ^ (16 * v4 + *p_welcome_to_SHCTF) ^ ((v4 >> 5) + p_welcome_to_SHCTF[1]);
        v4 += (v3 + v5) ^ (16 * v3 + p_welcome_to_SHCTF[2]) ^ ((v3 >> 5) + p_welcome_to_SHCTF[3]);
    }
    *a1 = v3;
    result = v4;
    a1[1] = v4;
    return result;
}

第一个代码在对密钥进行字符转ASCII并且进行小端序排序，第二个和第三个则是正常的tea算法加密，逆向代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
#include <bits/stdc++.h>
int main()
{
    char enc[]="welcome_to_SHCTF";
    uint32_t enc0[4]={0};
    for(int i=0;i<=15;i++)
    {
        enc0[i/4]+=enc[i]<<((i%4)*8);
    }
    for(int i=0;i<4;i++)
    {
        printf("0x%x,",enc0[i]);
    }
    return 0;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
#include <bits/stdc++.h>
using namespace std;

int main()
{
    uint32_t enc[4]={0x9ab5d2e1,0xbd37c059,0xA5A607AD,0x946EB834};
    uint32_t key[4]={0x636c6577,0x5f656d6f,0x535f6f74,0x46544348};
    uint32_t delta=0x9e3779b9;

    for(int n=0;n<4;n+=2)
    {
        uint32_t sum = delta << 5;
        for(int i=0;i<32;i++)
        {
            enc[n+1]-=(enc[n]+sum)^((enc[n]<<4)+key[2])^((enc[n]>>5)+key[3]);
            enc[n]  -=(enc[n+1]+sum)^((enc[n+1]<<4)+key[0])^((enc[n+1]>>5)+key[1]);
            sum -= delta;
        }
    }

    unsigned char *p = (unsigned char*)enc;
    for(int i=0;i<16;i++)
        putchar(p[i]);

    puts("");
}

依旧需要注意：

TEA只能处理32位数据，所以在IDA中不要忘了shift+e

SHCTF-where are you

一道很有意思的题目，藏了很多东西，也有很多假的东西和指引。

首先查找字符串定位到main逻辑

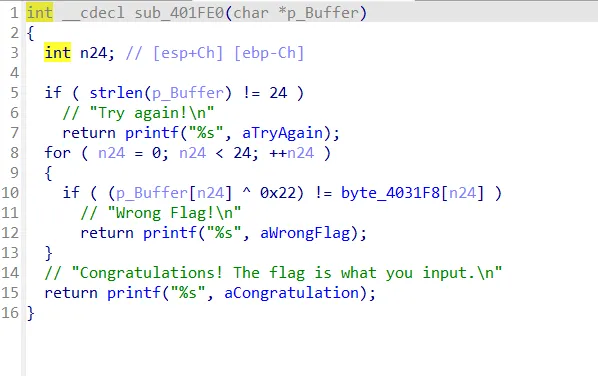

函数sub_401FE0中找到

逆向后得到假flag。

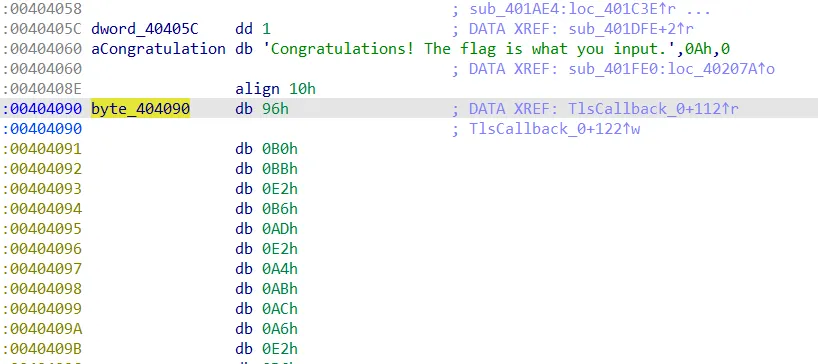

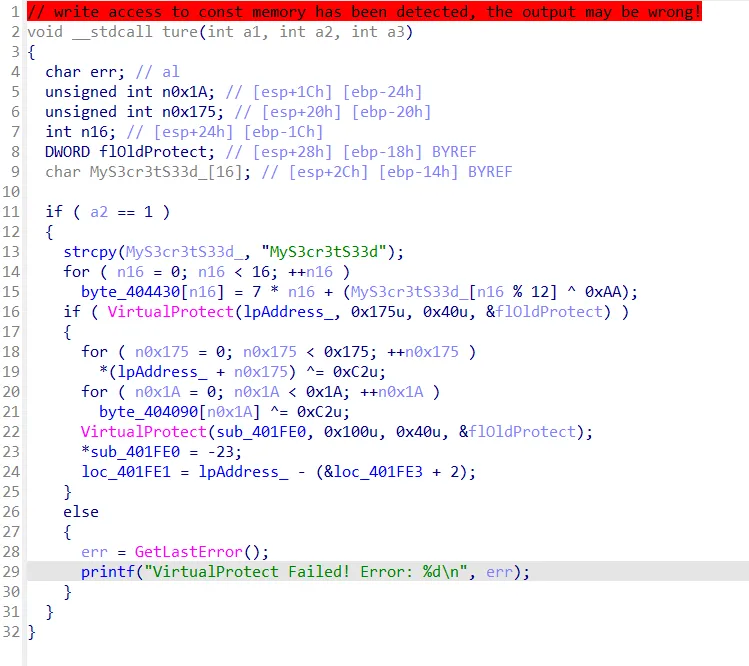

找到可疑数据byte_404090，x 定位，找到真正逻辑

这里需要下断点，在第二个virtualprotect处下断点

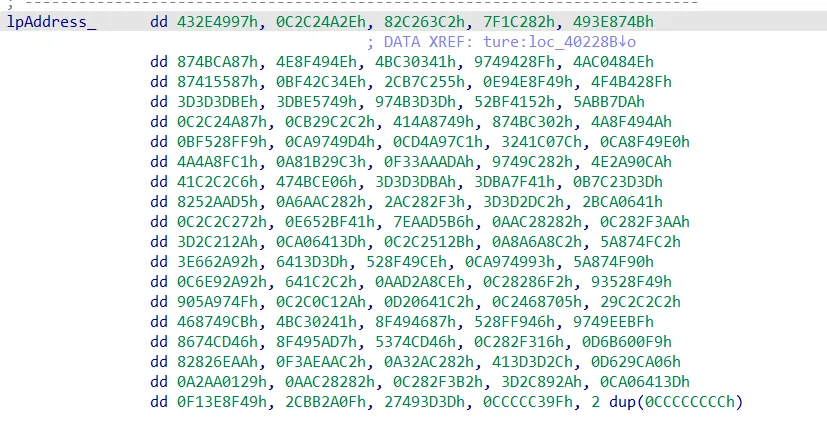

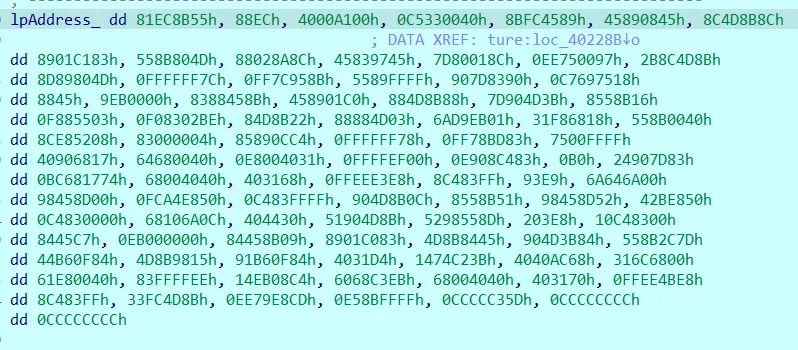

动调前的ipaddress

动调后的ipaddress

很明显发生变化了。下面就是一点点脑洞了，类似于处理花指令，这里也是CUP处理，然后可以得到真实逻辑

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
int __cdecl sub_402090(const char *Buf1)
{
  unsigned int n24; // [esp+4h] [ebp-84h]
  int n36; // [esp+Ch] [ebp-7Ch]
  int n24_1; // [esp+10h] [ebp-78h]
  _BYTE p_Buffer[100]; // [esp+20h] [ebp-68h] BYREF

  n24 = strlen(Buf1);
  if ( n24 != 24 )
    goto LABEL_7;
  for ( n24_1 = 0; n24_1 < 24; ++n24_1 )
    Buf1[n24_1] ^= 0x22u;
  if ( !memcmp(Buf1, fakeflag, 0x18u) )
    return printf("%s", byte_404090);
LABEL_7:
  if ( n24 != 36 )
    // "Try again!\n"
    return printf("%s", aTryAgain);
  memset(p_Buffer, 0, sizeof(p_Buffer));
  memcpy(p_Buffer, Buf1, 0x24u);
  sub_4023A0(p_Buffer, 36, byte_404430, 16);
  for ( n36 = 0; n36 < 36; ++n36 )
  {
    if ( p_Buffer[n36] != byte_4031D4[n36] )
      // "Wrong Flag!\n"
      return printf("%s", aWrongFlag);
  }
  // "Congratulations! The flag is what you input.\n"
  return printf("%s", aCongratulation);
}

查看过后是RC4，在上面可以看到密钥及其处理，那么这题就出了。逆向脚本如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
def rc4(data, key):
    S = list(range(256))
    j = 0

    # KSA
    for i in range(256):
        j = (j + S[i] + key[i % len(key)]) % 256
        S[i], S[j] = S[j], S[i]

    # PRGA
    i = j = 0
    out = bytearray()

    for byte in data:
        i = (i + 1) % 256
        j = (j + S[i]) % 256
        S[i], S[j] = S[j], S[i]

        K = S[(S[i] + S[j]) % 256]
        out.append(byte ^ K)

    return bytes(out)


cipher = bytes([
    0xea,0x64,0x65,0x15,0xff,0x0a,0xad,0x41,
    0x6f,0x81,0xa1,0x7b,0xa8,0xd0,0x5e,0x69,
    0x74,0x92,0x6a,0xe3,0xbd,0x6b,0x33,0x97,
    0x2d,0xc2,0xb5,0xfa,0xd0,0x8f,0x6d,0x3f,
    0xad,0x00,0xd0,0x91
])

key = bytes([
    0xE7,0xDA,0x07,0xAE,
    0xE5,0xFB,0xC3,0x0F,
    0x31,0xD8,0xDF,0x1B,
    0x3B,0x2E,0x5B,0x02
])

plain = rc4(cipher, key)

print("明文:", plain)
print("flag:", plain.decode(errors="ignore"))

SHCTF-damagePE

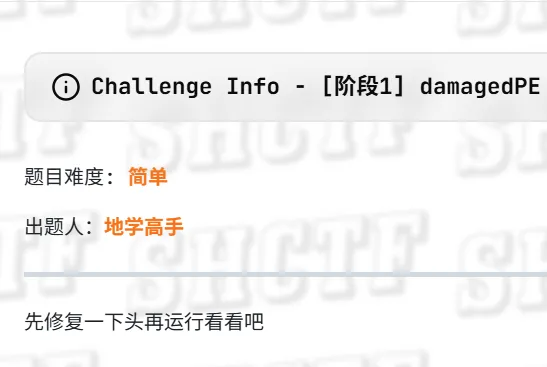

题干如下

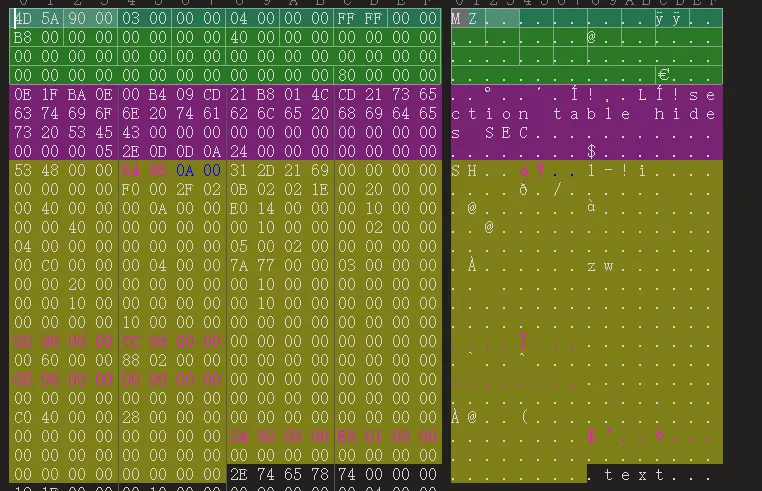

附件丢进010中之后如下

可以看到最大的问题在于PE被出题人改成了SH，改完后我们尝试运行并丢进IDA中

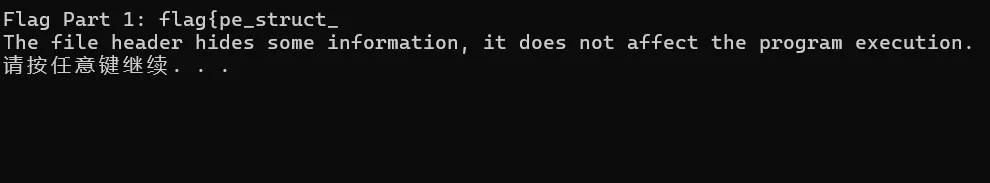

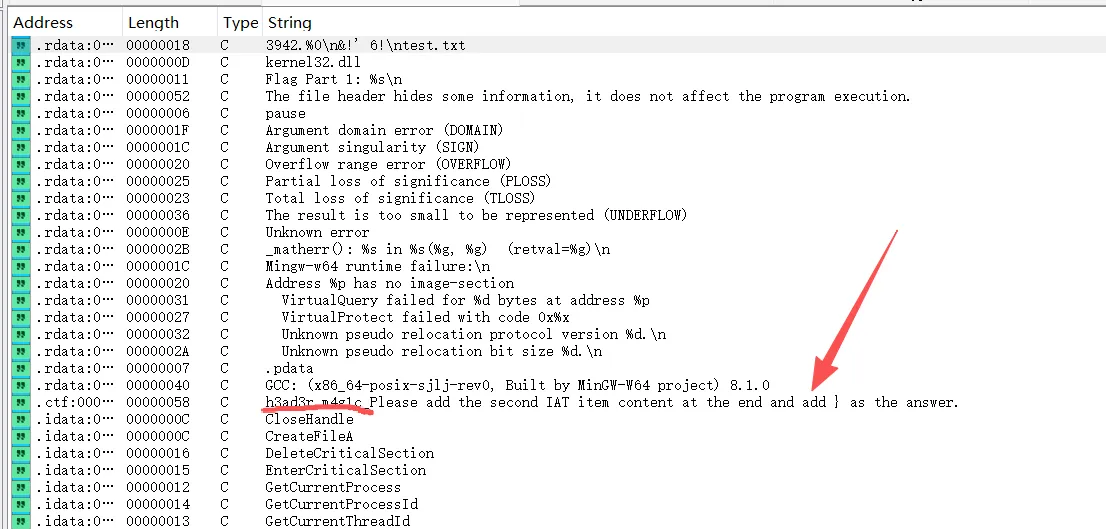

得到第一部分flag

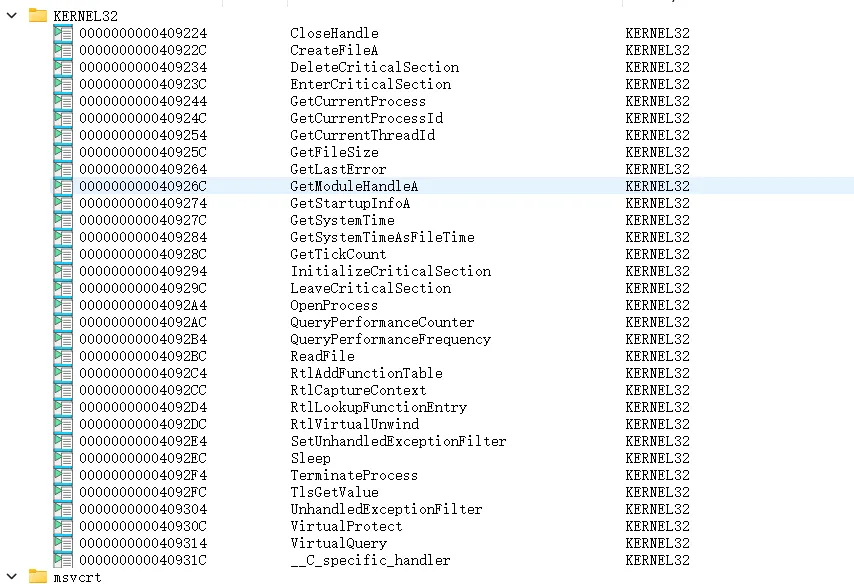

得到第二部分flag和提示。提示说找到第二个IAT，我们该怎么找导入函数呢？IDA中有一个强大的功能叫Imports，这个视窗中可以找到所有的导入函数

那答案就很明显了，两个都拿去试一下就能拿到flag了。

SHCTF-Safe Image Encryption

一道图像加密逆向问题，原伪代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
__int64 __fastcall main(int n3, char **a2, char **a3)
{
    int v3; // r13d
    __int64 v5; // r14
    unsigned int v6; // ebx
    int v7; // eax
    int v8; // r13d
    int v9; // r15d
    unsigned __int64 v10; // rcx
    char v11; // di
    char v12; // si
    unsigned __int64 v13; // rtt
    char v14; // r9
    unsigned __int16 v15; // bx
    char v16; // di
    unsigned __int8 v17; // si
    char v18; // dl
    int v19; // ebx
    int v20; // r12d
    char v22; // [rsp+15h] [rbp-2A3h]
    char v23; // [rsp+16h] [rbp-2A2h]
    char v24; // [rsp+17h] [rbp-2A1h]
    char v25; // [rsp+23h] [rbp-295h] BYREF
    unsigned int v26; // [rsp+24h] [rbp-294h] BYREF
    unsigned int v27; // [rsp+28h] [rbp-290h] BYREF
    char v28[4]; // [rsp+2Ch] [rbp-28Ch] BYREF
    _QWORD v29[4]; // [rsp+30h] [rbp-288h] BYREF
    __int64 v30; // [rsp+50h] [rbp-268h] BYREF
    unsigned __int64 n1003; // [rsp+58h] [rbp-260h]
    _QWORD v32[73]; // [rsp+70h] [rbp-248h] BYREF

    v32[65] = __readfsqword(0x28u);
    if ( n3 <= 3 )
    {
        __printf_chk(2, "Usage: %s <original.png> <key_file> <encrypted.png>\n", *a2);
        return 1;
    }
    else
    {
        v5 = sub_EB59(a2[1], &v26, &v27, v28, 4);
        if ( v5 )
        {
            std::ifstream::basic_ifstream(v32, a2[2], 8);
            sub_FE54(&v30, *(&v32[29] + *(v32[0] - 24LL)), 0xFFFFFFFFLL, 0, 0xFFFFFFFFLL, v29);
            if ( n1003 )
            {
                if ( n1003 == 1003 )
                {
                    sub_FF74(v29, (4 * v27 * v26), &v25);
                    v7 = v3;
                    v8 = 0;
                    v9 = v7;
                    while ( v27 > v8 )
                    {
                        v20 = 0;
                        v19 = v9;
                        while ( v26 > v20 )
                        {
                            v10 = (4 * (v20 + v8 * v26));
                            v22 = *(v5 + v10 + 1);
                            v23 = *(v5 + v10 + 2);
                            v24 = *(v5 + v10 + 3);
                            v11 = *(v30 + (v10 % n1003 + 1) % n1003);
                            v12 = *(v30 + (v10 % n1003 + 2) % n1003);
                            v13 = v10 % n1003 + 3;
                            v14 = v8 * v8 + v11;
                            LOBYTE(v15) = v20 * v20 + *(v30 + v10 % n1003) + (*(v30 + v10 % n1003) ^ 0xAA);
                            v16 = v12 ^ (v20 * v8) ^ (3 * v11);
                            HIBYTE(v15) = v16;
                            v17 = v14 + ((2 * v12) ^ 0x66);
                            v18 = (*(v30 + v13 % n1003) ^ 0x55) - 16;
                            v19 = (((*(v30 + v13 % n1003) ^ 0x55) - 16) << 24) | (v17 << 16) & 0xFFFFFF | v15;
                            *(v29[0] + v10) = *(v5 + v10) ^ (v20 * v20 + *(v30 + v10 % n1003) + (*(v30 + v10 % n1003) ^ 0xAA));
                            *(v29[0] + v10 + 1) = v22 ^ v16;
                            *(v29[0] + v10 + 2) = v23 ^ v17;
                            *(v29[0] + v10 + 3) = v24 ^ v18;
                            ++v20;
                        }
                        v9 = v19;
                        ++v8;
                    }
                    sub_FBD3(a2[3], v26, v27, 4, v29[0], 4 * v26);
                    puts("Encryption completed.");
                    sub_DB6D(v5);
                    sub_FEB0(v29);
                    v6 = 0;
                }
                else
                {
                    puts("Hint: key length is 1003 characters.");
                    v6 = 1;
                }
            }
            else
            {
                puts("Key text is empty!");
                v6 = 1;
            }
      std::string::_M_dispose(&v30);
      std::ifstream::~ifstream(v32);
    }
    else
    {
      puts("Error loading image.");
      return 1;
    }
  }
  return v6;
}

说实话我不是很懂这是什么玩意儿，逆向脚本如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
from PIL import Image
import os

KEYLEN = 1003

# 常见背景候选（你也可以继续加）
BACKGROUND_CANDIDATES = [
    ("white",   (255, 255, 255, 255)),
    ("black",   (0, 0, 0, 255)),
    ("transparent", (0, 0, 0, 0)),
    ("gray128", (128, 128, 128, 255)),
    ("gray200", (200, 200, 200, 255)),
    ("blue",    (0, 0, 255, 255)),
    ("red",     (255, 0, 0, 255)),
    ("green",   (0, 255, 0, 255)),
]

def recover_key(img, known_pixel):
    """
    利用假设背景 known_pixel 来恢复 key
    """
    w, h = img.size
    data = bytearray(img.tobytes())

    key = [None] * KEYLEN

    for y in range(h):
        for x in range(w):

            idx = 4 * (x + y * w)

            c0, c1, c2, c3 = data[idx:idx+4]
            p0, p1, p2, p3 = known_pixel

            # 推 mask
            m0 = c0 ^ p0
            m3 = c3 ^ p3

            pos0 = idx % KEYLEN
            pos3 = (idx + 3) % KEYLEN

            # 爆破 k0
            if key[pos0] is None:
                for guess in range(256):
                    calc = (x*x + guess + (guess ^ 0xAA)) & 0xFF
                    if calc == m0:
                        key[pos0] = guess
                        break

            # 爆破 k3
            if key[pos3] is None:
                for guess in range(256):
                    calc = ((guess ^ 0x55) - 16) & 0xFF
                    if calc == m3:
                        key[pos3] = guess
                        break

    recovered = sum(k is not None for k in key)

    # 未恢复补0
    for i in range(KEYLEN):
        if key[i] is None:
            key[i] = 0

    return bytes(key), recovered


def decrypt(img, key):
    """
    完整解密 ELF 的 XOR mask
    """
    w, h = img.size
    data = bytearray(img.tobytes())

    for y in range(h):
        for x in range(w):

            idx = 4 * (x + y * w)

            k0 = key[idx % KEYLEN]
            k1 = key[(idx + 1) % KEYLEN]
            k2 = key[(idx + 2) % KEYLEN]
            k3 = key[(idx + 3) % KEYLEN]

            m0 = (x*x + k0 + (k0 ^ 0xAA)) & 0xFF
            m1 = (k2 ^ (x*y) ^ (3*k1)) & 0xFF
            m2 = (y*y + k1 + ((2*k2) ^ 0x66)) & 0xFF
            m3 = ((k3 ^ 0x55) - 16) & 0xFF

            data[idx]   ^= m0
            data[idx+1] ^= m1
            data[idx+2] ^= m2
            data[idx+3] ^= m3

    return Image.frombytes("RGBA", (w, h), bytes(data))


def score_image(img):
    """
    给解密结果打分：
    正常图片颜色分布不会像随机噪声一样均匀
    用简单方差统计判断
    """
    pixels = list(img.getdata())
    total = 0
    for r, g, b, a in pixels[::500]:  # 抽样
        total += abs(r - g) + abs(g - b)
    return total


if __name__ == "__main__":
    img = Image.open("encrypt.png").convert("RGBA")

    os.makedirs("outputs", exist_ok=True)

    best = None

    for name, bg in BACKGROUND_CANDIDATES:
        print(f"\n[*] Trying background: {name} {bg}")

        key, recovered = recover_key(img, bg)
        print(f"[+] Key recovered bytes: {recovered}/{KEYLEN}")

        dec = decrypt(img, key)

        out_file = f"outputs/decrypted_{name}.png"
        dec.save(out_file)

        sc = score_image(dec)
        print(f"[+] Score = {sc}")

        if best is None or sc > best[0]:
            best = (sc, out_file)

    print("\n==============================")
    print("[★] Best candidate output:")
    print("File:", best[1])
    print("==============================")
    print("Open outputs/ folder and check the decrypted images!")
